Arduino Car or Motorbike Engine RPM Meter Shift Light Inductive Spark Plug Sensor

by Kostas Kokoras



Don't forget to visit my YouTube channel here to check out my other Arduino videos.

Also check out my other Arduino projects :

http://www.kokoras.com/solartracker/en/

http://www.kokoras.com/BluetoothRCcar/



NOTICE : Use all information in this page (hardware, schematics, Arduino Code, etc) in your own risk.

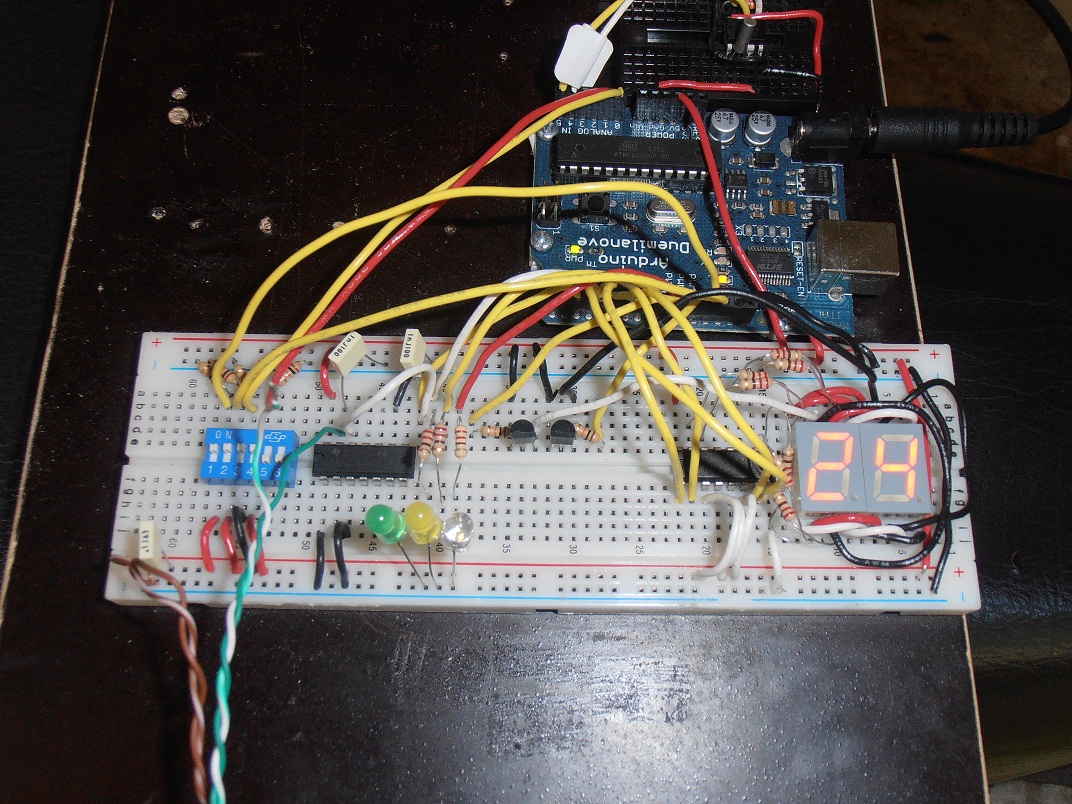

Breadboard

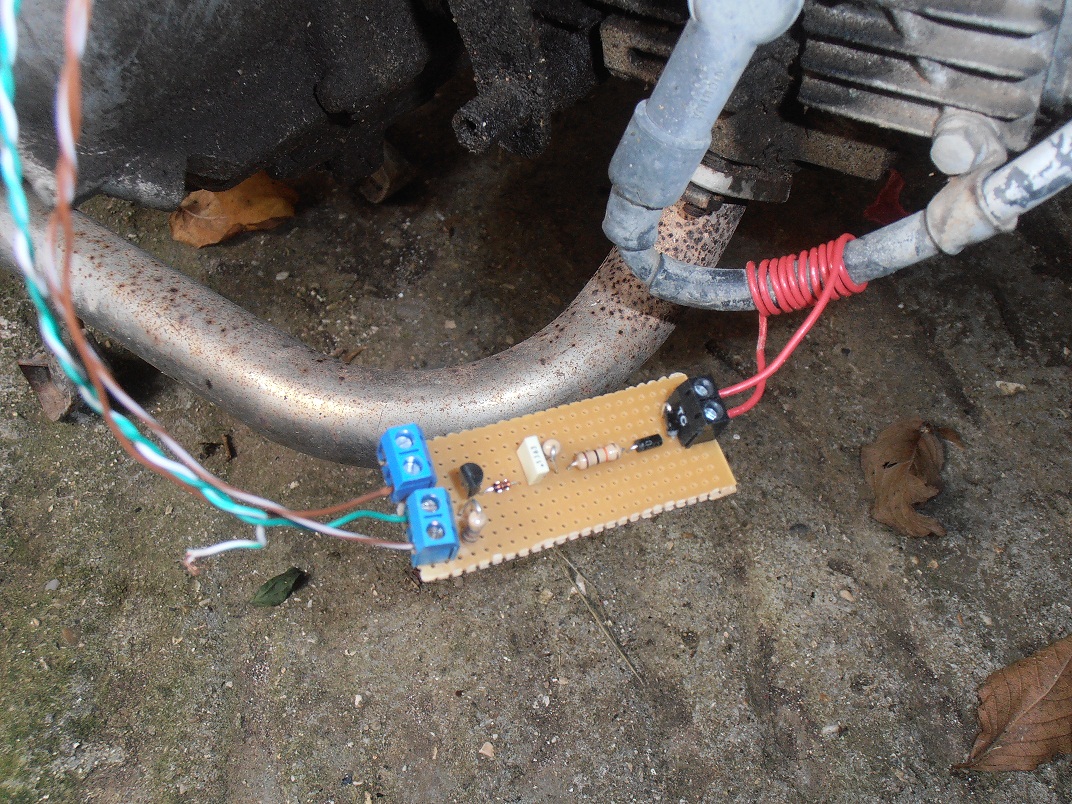

Spark Plug Sensor

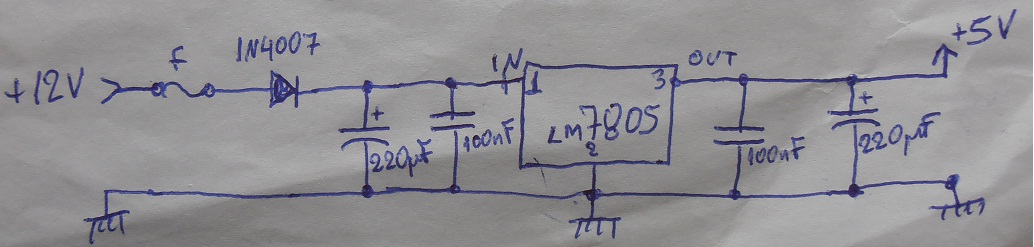

Power Supply
Power Supply

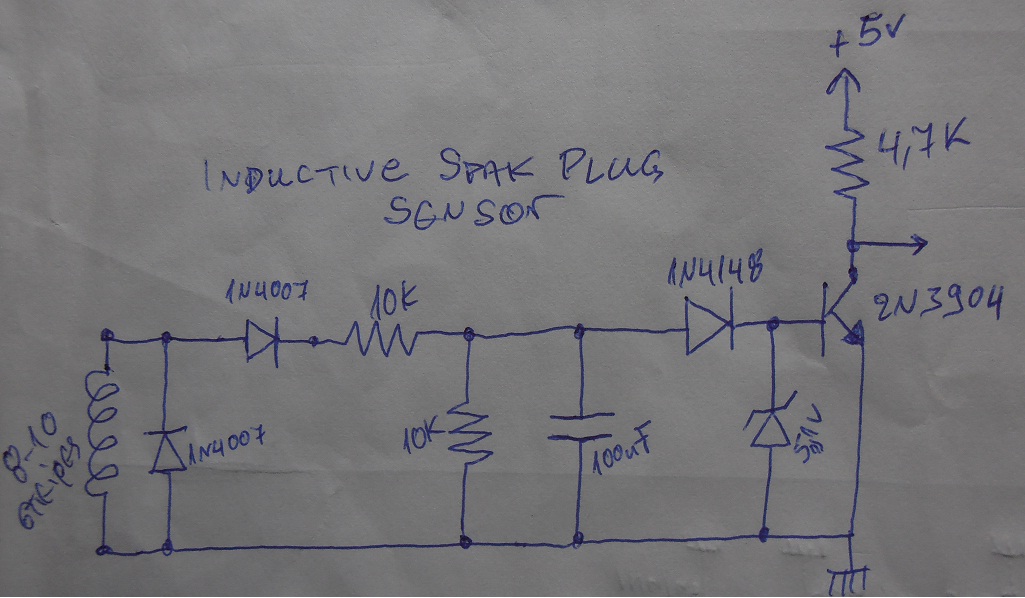

Sensor
Inductive Spark Plug Sensor

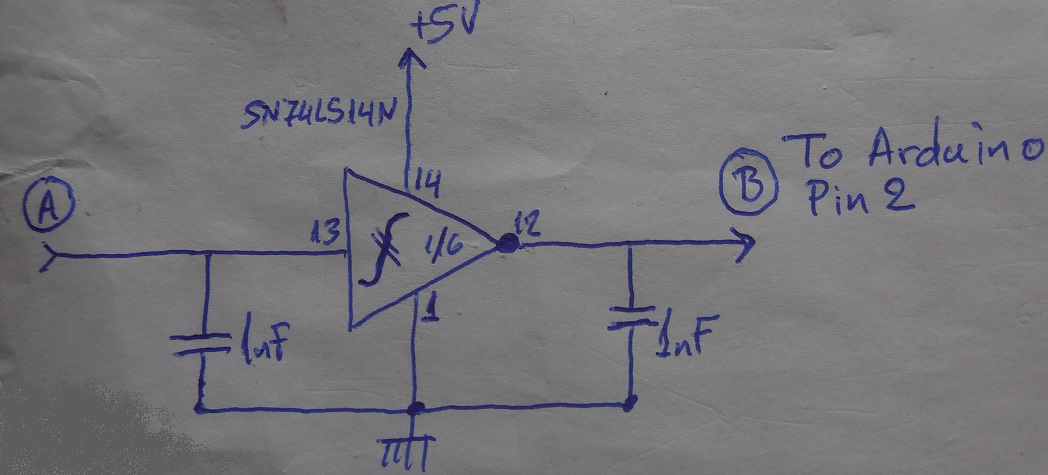

Schmittrigger
Schmitt Trigger

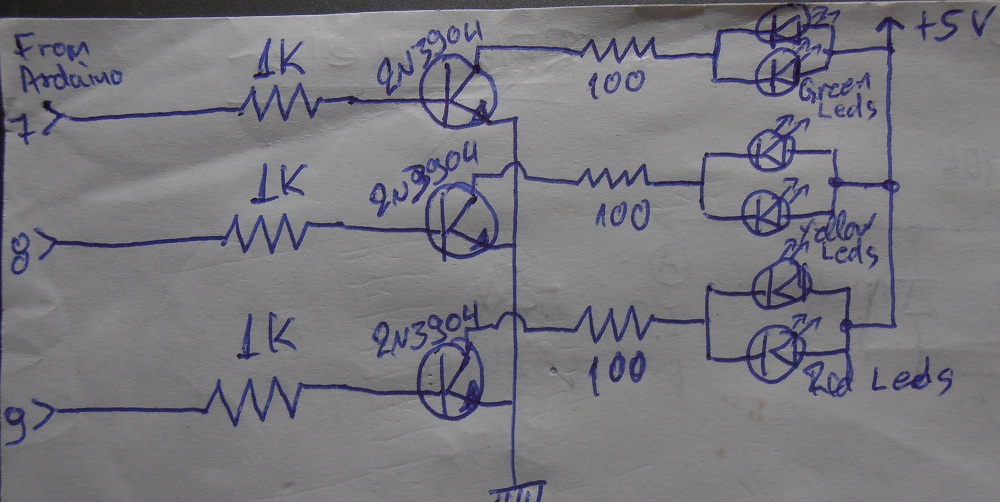

Shift Lights
Shift Lights

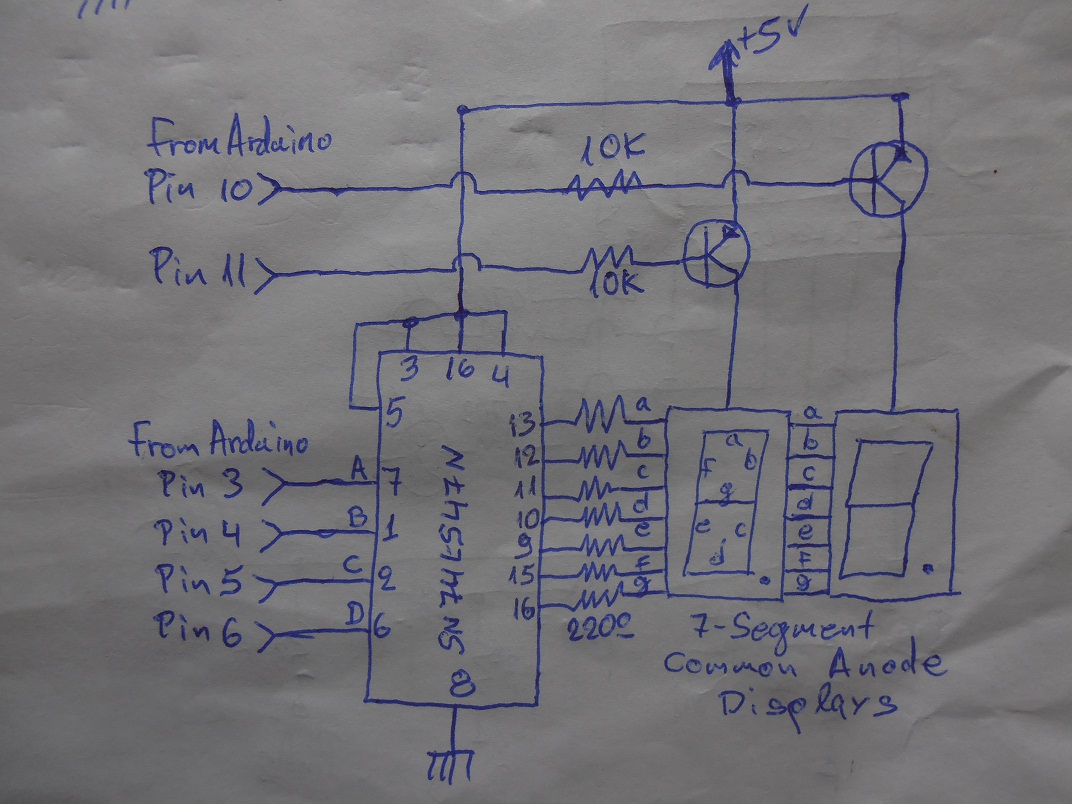

7-seg displays
7-Segment Displays

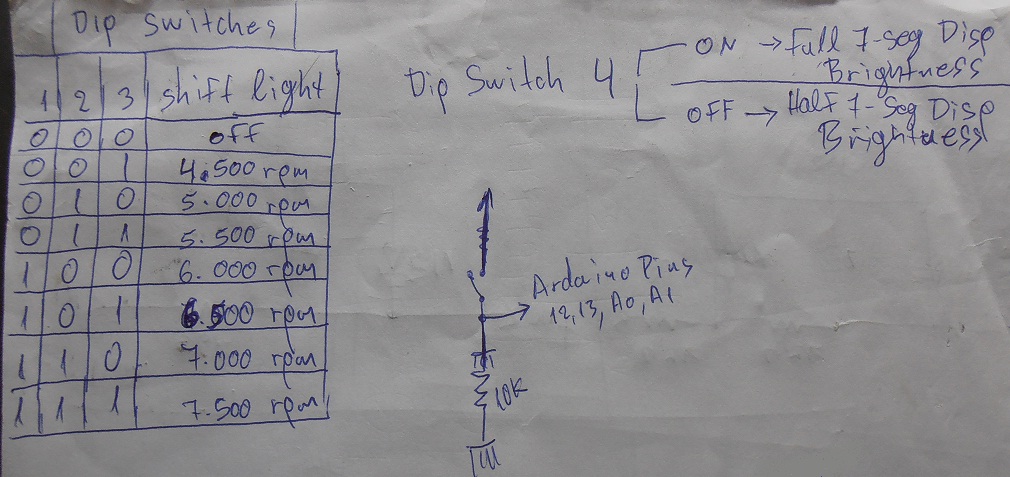

Dip Switches
Dip Switch

Arduino Code
int BinaryPins[] = {3,4,5,6};

int decades;
int monades;

const int ignitionPin = 2;
const int ignitionInterrupt = 0;
const unsigned int pulsesPerRev = 1;

const int ledpin_green=7;
const int ledpin_yellow=8;
const int ledpin_red=9;

const int led_dec=10;
const int led_mon=11;

const int dip_sw1=12;
const int dip_sw2=13;
const int dip_sw3=A0;
const int dip_sw4=A1;

unsigned long lastPulseTime = 0;
unsigned long rpm = 0;
int rpm_int;
int rpm_to_disp;


int disp_bright;

int shift_light_rpm;




void setup() {

  Serial.begin(9600);
  pinMode(3, OUTPUT);
  pinMode(4, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(6, OUTPUT);


  pinMode(ledpin_green, OUTPUT);
  pinMode(ledpin_yellow, OUTPUT);
  pinMode(ledpin_red, OUTPUT);

  pinMode(led_dec, OUTPUT);
  digitalWrite(led_dec,HIGH);
  pinMode(led_mon,OUTPUT);
  digitalWrite(led_mon,HIGH);

  pinMode(ignitionPin, INPUT);
  attachInterrupt(ignitionInterrupt, &ignitionIsr, RISING);



  pinMode(dip_sw1,INPUT); //-----------------------------
  pinMode(dip_sw2,INPUT); //shift light rpm configuration
  pinMode(dip_sw3,INPUT); //-----------------------------
  pinMode(dip_sw4,INPUT); //on=full brightness of 7-segments----off=low brightness of 7 segments

  if (digitalRead(dip_sw4)==HIGH) disp_bright=0; else disp_bright=200;

  chk_dips();

  demo();

  digitalWrite(ledpin_green,LOW);
  digitalWrite(ledpin_yellow,LOW);
  digitalWrite(ledpin_red,LOW);


}

void demo(){

  for(int i=0;i<10;i++){
    if (i==3) digitalWrite(ledpin_green,HIGH);
    if (i==5) digitalWrite(ledpin_yellow,HIGH);
    if (i==8) digitalWrite(ledpin_red,HIGH);
    for(int j=0;j<10;j++){
      sevenSegWriteDec(i);
      delay(10);
      sevenSegWriteMon(j);
      delay(10);
    }
  }

  for(int i=9;i>-1;i--){
    if (i==3) digitalWrite(ledpin_green,LOW);
    if (i==5) digitalWrite(ledpin_yellow,LOW);
    if (i==8) digitalWrite(ledpin_red,LOW);
    for(int j=9;j>-1;j--){
      sevenSegWriteDec(i);
      delay(10);
      sevenSegWriteMon(j);
      delay(10);
    }
  }
}

void ignitionIsr()
{
  unsigned long now = micros();
  unsigned long interval = now - lastPulseTime;
  if (interval > 5000)
  {
     rpm = 60000000UL/(interval * pulsesPerRev);
     lastPulseTime = now;
     //rpm_int=int(rpm);
  }

}


void sevenSegWriteDec(int digit) {

  if (digit>0) analogWrite(led_dec,disp_bright); else digitalWrite(led_dec,HIGH);
  digitalWrite(led_mon,HIGH);

  for (byte i = 0; i < 4; ++i) {
    int dec_val=digit&1;
    digitalWrite(BinaryPins[i],dec_val);
    digit=digit>>1;
  }
}
void sevenSegWriteMon(int digit) {

  digitalWrite(led_dec,HIGH);
  analogWrite(led_mon,disp_bright);

  for (byte i = 0; i < 4; ++i) {
    int mon_val=digit&1;
    digitalWrite(BinaryPins[i],mon_val);
    digit=digit>>1;
  }
}

void chk_dips(){
  int dip_val;

  dip_val=digitalRead(dip_sw1);
  dip_val=dip_val << 1;
  dip_val=dip_val+digitalRead(dip_sw2);
  dip_val=dip_val << 1;
  dip_val=dip_val+digitalRead(dip_sw3);

  switch (dip_val){
    case 0:shift_light_rpm=0;
    break;
    case 1:shift_light_rpm=45;
    break;
    case 2:shift_light_rpm=50;
    break;
    case 3:shift_light_rpm=55;
    break;
    case 4:shift_light_rpm=60;
    break;
    case 5:shift_light_rpm=65;
    break;
    case 6:shift_light_rpm=70;
    break;
    case 7:shift_light_rpm=75;
    break;
  }
}

void loop() {




  noInterrupts();
  rpm_to_disp=int(rpm);
  interrupts();



  if ((rpm_to_disp>399) && (rpm_to_disp<10000)){

   rpm_to_disp=rpm_to_disp/100;
   decades=rpm_to_disp / 10;
   monades=rpm_to_disp % 10;


   sevenSegWriteDec(decades);
   delay(10);
   sevenSegWriteMon(monades);
   delay(10);


  if (shift_light_rpm>0){
  if (rpm_to_disp>=shift_light_rpm-10) digitalWrite(ledpin_green,HIGH); else digitalWrite(ledpin_green,LOW);
  if (rpm_to_disp>=shift_light_rpm-5) digitalWrite(ledpin_yellow,HIGH); else digitalWrite(ledpin_yellow,LOW);
  if (rpm_to_disp>=shift_light_rpm) digitalWrite(ledpin_red,HIGH); else digitalWrite(ledpin_red,LOW);
  }


  }
  else
  {
    digitalWrite(led_dec,HIGH);
    digitalWrite(led_mon,HIGH);
  }

}
